Blue Black Brown High Tensile Steel Strapping
High tensile steel strappings manufactured from special cold rolled steel coil, are debureed, heat treated, pained and waxed in continued line by automatic machining controlling to obtain high strength and excellent shock resstance which ae for heavy dut products applications.High tensile steel strappings are manufactured from a special cold rolled steel and are heat - treated to get high tensil strength above 930Mpa and the elongation over 6%.
Physical Properties
Thickness x Width
| thickness(mm) | width(mm) |
|
0.40 |
16 |
| 0.50 | 16,19 |
| 0.60 | 16,19 |
| 0.70 | 19 |
| 0.80 | 19,25.4,31.75,32 |
| 0.90 | 19,25.4,31.75,32,40 |
| 1.0 | 19,25.4,31.75,32,40 |
| 1.2 | 31.75,32,40 |
|
thickness toleance 0.40~0.60+/-0.002mm 0.70~1.20+/-0.003mm |
width tolearance 16-40mm+/-0.1mm |
Finish
Blue tempered + Waxed
Painted + Waxed, such as black, brown, green, etc
Zinc coated + waxed
Coil Dimension
Coil I.D: 200mm, 300mm, 406mm
Coil O.D (max): 1000mm

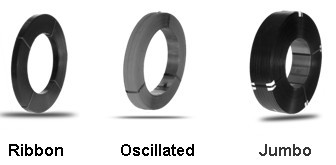

| Coil winding | Coil face | Coil weight |
| Ribbon wound |
16mm,19mm, 25.4mm,31.75mm, 32mm,40mm |
45-50kgs |
| Oscillated wound | 63.5mm | 50kgs |
| Jumbo wound | 190mm | 200-400kgs |

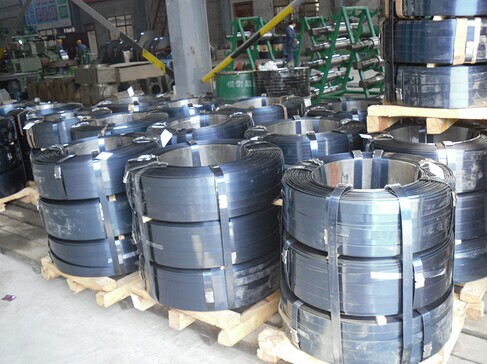

Packing:
Each bundle is packed with water proof paper and put onto
wooden pallet or iron pallet
Note
sizes, breaking load min, finish, coiling type, coil I.D, coil O.D, can be made accord. to customers`s requirement
